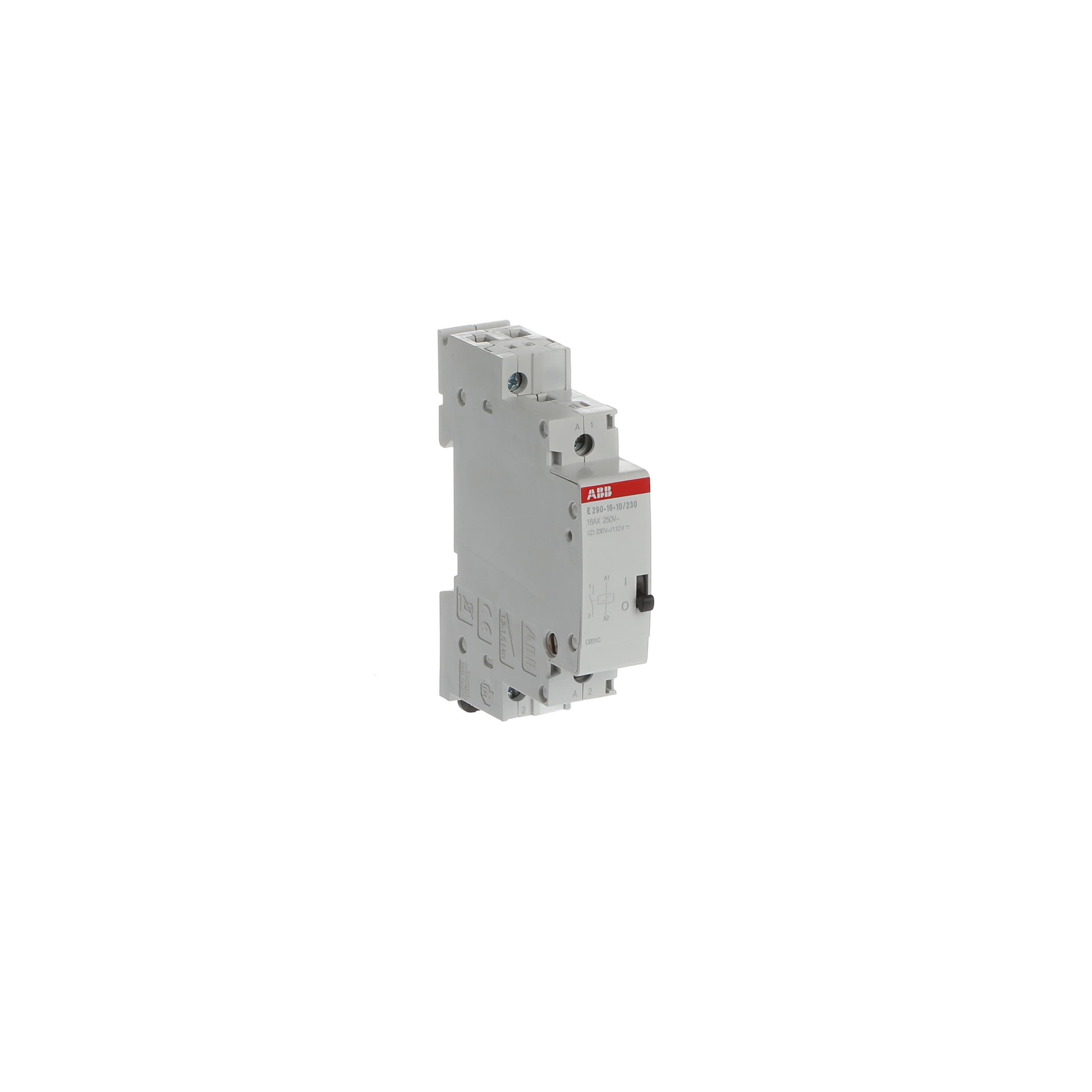

Latching relays are electromagnetically operated devices. The E290 range from ABB can be used to realise a simple, energy saving and efficient lighting control system. These devices are mainly used in private houses, factory premises and commercial and public buildings as well as in industrial plants. As a rule, latching relays controlled by means of impulse buttons are installed where it is necessary for lighting to be operated from at least three different places. Each time a command is initiated (by means of an impulse button), an electrical pulse is applied to the coil of the latching relay. The coil in the device is briefly energised and activated. That short pulse to the coil leads to the mechanical latch of the internal main contacts. The internal switching mechanism enables us to achieve a safe and reliable interlock (in the same way as a ballpoint pen). Each pulse that is sent to the magnetic coil system switches the device to its previous position where it is held mechanically until the next control pulse is received. The devices are designed for rated currents 16 and 32A. Through the combinable accessories the main modules can be used in nearly all market applications.

Function

Mechanical latching relay

Rated Control Circuit Voltage (Uc)

230 V AC · 110 V DC

Number of Main Contacts NC

0

Number of Main Contacts NO

1

Number of Auxiliary Contacts NC

0

Number of Auxiliary Contacts NO

0

Sound dB (A)

(@distance 1 m) 60 dB

Tightening Torque

1.2 - 1.5 N·m

Response Time

<3 ms

Impulse Duration

Minimum 50 ms

Contact Type

Normally Open (NO)

Coil Consumption

Control Voltage V AC 230 V AC · 0.062 A · Control Voltage V DC 110 V DC · Average Pull-in Value 50 Hz 0.057 A

Connecting Capacity

Solid 1 x 1 ... 10 mm² · Flexible 2 x 2.5 mm² · Flexible with Cable End 1 x 0.75 ... 6 mm² · Flexible with Cable Lug 1 x 0.75 ... 6 mm²

Width in Number of Modular Spacings

1

Product Net Width

18 mm

Product Net Height

85 mm

Product Net Depth / Length

62 mm

Product Net Weight

114 g

Built-In Depth (t2)

68 mm

Dimension Diagram

9AKK107992A6188

Données indicatives issues de la documentation constructeur. Demandez la fiche technique pour les valeurs contractuelles.
