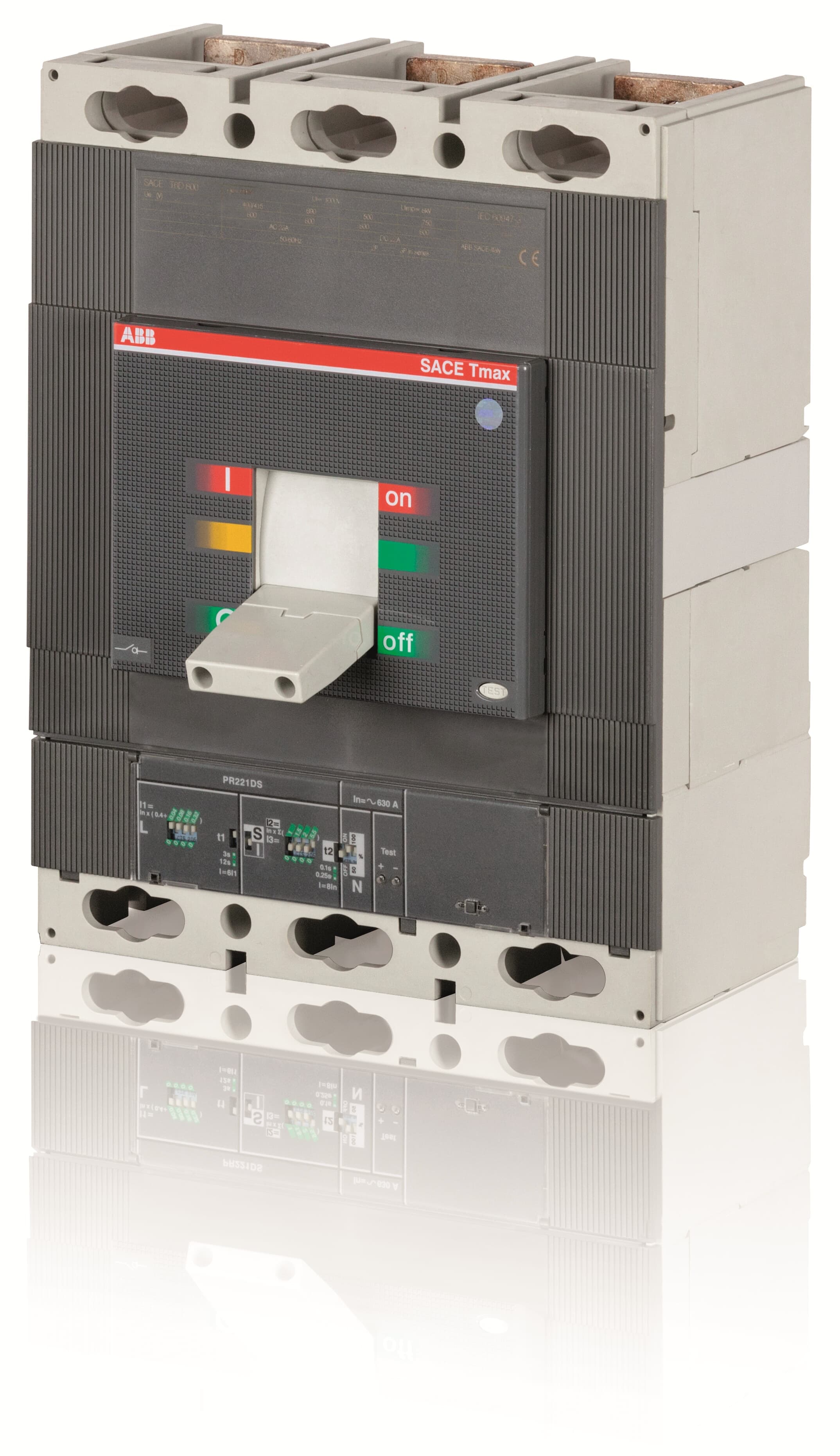

C.Breaker Tmax T6N 1000 fixed three-pole with front terminals and solid-state release in AC PR221DS-LS/I R 1000

Electrical Durability

4000 cycle · 60 cycles per hour

Mechanical Durability

20000 cycle · 120 cycles per hour

Number of Poles

3P

Power Loss

at Rated Operating Conditions per Pole 50 W

Rated Current (In)

1000 A

Rated Impulse Withstand Voltage (Uimp)

8 kV

Rated Insulation Voltage (Ui)

1000 V

Rated Operational Voltage

690 V AC

Rated Service Short-Circuit Breaking Capacity (Ics)

(220 V AC) 70 kA · (230 V AC) 70 kA · (380 V AC) 36 kA · (400 V AC) 36 kA · (415 V AC) 36 kA · (440 V AC) 30 kA · (500 V AC) 25 kA · (690 V AC) 15 kA

Rated Ultimate Short-Circuit Breaking Capacity (Icu)

(220 V AC) 70 kA · (230 V AC) 70 kA · (380 V AC) 36 kA · (400 V AC) 36 kA · (415 V AC) 36 kA · (440 V AC) 30 kA · (500 V AC) 25 kA · (690 V AC) 20 kA

Rated Uninterrupted Current (Iu)

1000 A

Release

PR221DS-LS/I

Release Type

EL

Short-Circuit Performance Level

N

Standards

IEC

Sub-type

T6

Terminal Connection Type

Fixed Circuit-Breakers · Front

Test Voltage Max (Utest)

3500 V

Product Net Width

210 mm

Product Net Height

268 mm

Product Net Depth / Length

103.5 mm

Product Net Weight

12.863 kg

Product Main Type

SACE Tmax T

Product Name

Moulded Case Circuit Breaker

Product Type

Automatic Circuit Breaker

Suitable For

T6

Suitable for Product Class

Moulded Case Circuit Breakers

Version

F
